The main products and services provided through robotic welding systems include customization of shop display fixtures, metal gondolas, shelving units, and display racks. Robotic welding equipment produces metal fixtures three times faster than manual welding methods. The systems reduce labor costs by 75% while maintaining high-quality standards.

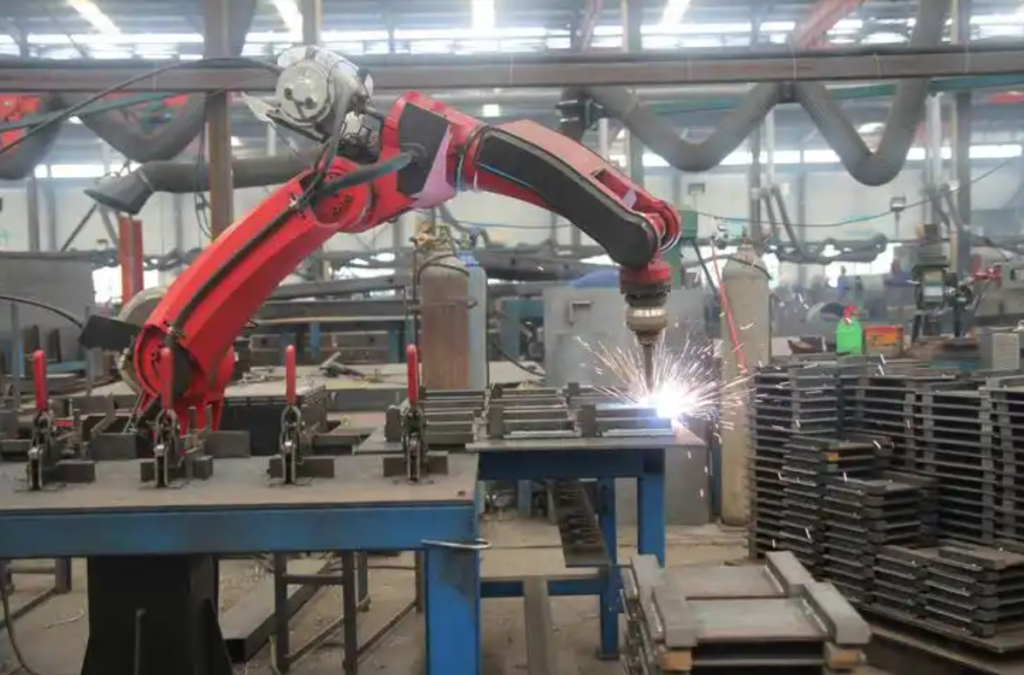

Robotic welding systems operate continuously without production delays. The equipment eliminates worker exposure to welding fumes and maintains consistent output quality. Manufacturing facilities report 50% of industrial robots now handle welding applications.
The guide provides technical specifications for robotic welding implementation. Topics include system setup requirements, fixture design standards, quality control procedures, and return on investment calculations. Factory managers will find detailed information about automating welding processes for metal display products manufacturing.
Manufacturing Challenges for Shop Display Products
Shop display manufacturers require skilled welders for metal fixture production. Current market data shows 400,000 unfilled welding positions expected by 2024. The shortage affects product quality and manufacturing efficiency.
Manual Production Limitations
The main production challenges stem from skilled welder scarcity. Manual welding operations show reduced output rates and increased material waste. Traditional welding operations cannot maintain consistent quality standards for complex display frames. Quality issues occur frequently due to insufficient skilled personnel.
Product Quality Issues
Metal display frame quality verification requires extensive manual inspection. Each large display frame contains 500+ welding points needing verification. Quality inspection time exceeds 2 hours per product unit. Common quality defects include:
- Electrical connection failures
- Material surface irregularities
- Incorrect weld positioning
- Component cooling problems
Manufacturing Cost Factors
Metal fixture production costs include multiple labor components:
- Unemployment tax payments
- Insurance requirements
- Employee benefits
- Training programs
- Education allowances
Contractor labor rates often include a 50% markup above standard hourly rates. Manual inspection processes increase error probability in quality verification. Quality problems concentrate at weld start points and end locations.
Manual welding methods show reduced efficiency for metal display manufacturing. Quality control systems require substantial resource allocation when defects appear in multiple products. Current welding personnel express concerns about automated system adoption.
Robotic Welding System Setup Requirements
The main equipment requirements for robotic welding systems include welding robot arms, power sources, and programming interfaces. System setup specifications ensure optimal manufacturing performance for metal display products.
Robot Arm Selection Standards
Robot arm selection depends on welding application requirements. The payload capacity must support welding torch weight and cable assemblies. Key technical specifications include:
- Maximum reach distance for weld point access
- Position accuracy measurements
- 4-6 axis movement capabilities
- Environmental protection ratings
- Cable management systems
Fixed production lines require Cartesian robots for basic welding tasks. Complex metal display products need six-axis robots for precision welding requirements.
Production Area Configuration
Manufacturing space requirements include robot cell placement and power source locations. The workspace layout must support material movement through production stages.
Power source installation specifications:
- Mezzanine mounting above robot cells
- Junction blocks at robot base position
- High-flex cable connections to feeders
Nozzle cleaning equipment requires flat surface mounting for anti-spatter control. Dual robot installations can share single cleaning units for cost reduction.
System Programming Standards
Robot programming requires operator training certification. Manufacturing equipment suppliers provide basic operation courses. Advanced system programming improves production efficiency.
Modern control systems offer simplified programming interfaces. Technical staff must maintain programming and equipment maintenance. Current welding personnel can operate systems without robotics certification.
Product design documents require electronic format specifications. Technical drawings ensure consistent weld placement in production. Material preparation processes must meet robotic welding tolerances.
Metal Display Fixture Design Requirements
The main welding fixture requirements ensure precise part positioning during robotic welding operations. Manufacturing specifications must maintain consistent product quality through automated welding processes.
Custom Manufacturing Standards
Metal fixture design specifications require exact tolerances for automated welding systems. The fixtures must provide stable part positioning in high-temperature welding environments. Quick part installation features reduce production time while maintaining part repeatability standards.
Manufacturing quality depends on fixture consistency and tolerance control. Product specifications focus on repeatable positioning standards . The welding fixtures must maintain weld joint location repeats within +/- half the diameter of welding wire specifications.
Material Requirements
The main materials for welding fixture production include:
- Steel base construction for cost reduction
- Tool steel components for wear resistance
- Bronze alloys for magnetic control
- Copper materials for electrical flow
Material thermal properties affect fixture performance standards. Copper remains the preferred choice for heat sinks despite aluminum alternatives. Copper alloy specifications include zinc or tungsten for durability.
Aluminum components require strict thermal control standards. Material expansion affects positioning accuracy during welding operations. Electrical conductivity specifications depend on material selection standards.
Base material requirements must support high-volume production processes. Steel tubing provides economical framework construction. Tool steel ensures precise location point stability.
Material integration standards maintain fixture control specifications. Quality requirements prevent part deformation through production cycles.
Production Line System Requirements
Robotic welding fixtures require specific production line integration standards. Manufacturing facilities use automated systems for metal display product assembly.
Material Movement Systems
Robotic handling equipment moves metal components up to 115 lbs through welding cells. Material handling systems provide:
- Welding fixture loading operations
- Station-to-station transfers
- Part position adjustments
- Product removal processes
- Storage system coordination
RFID systems verify fixture selection standards. Production operators use kanban cards for weldment identification. Welding program selection follows automated control standards.
Conveyor Equipment Standards
Metal display manufacturing requires two-level conveyor systems. Upper level specifications include chain conveyors with storage zones. Lower level requirements specify gravity conveyors and roller systems.
Conveyor system specifications depend on product size requirements. Manufacturing facilities must verify conveyor length standards and transfer points. System testing confirms smooth material movement through production zones.
Laser safety equipment prevents conveyor operation near operators. Control panel integration maintains safe material handling through production stages.
Quality Control Standards
Production line quality systems use automated inspection equipment. Laser measurement systems compare weld quality to product standards. Quality verification shows 99% accuracy compared to manual inspection methods.
Quality control includes:
- RFID part verification
- Position measurement
- Weld parameter checks
- Automated weld inspection
- Final product verification
PLC systems collect quality data through production cycles. Manufacturing parameters adjust based on quality measurements for consistent product standards.
Quality Control Equipment Standards
The main quality control equipment includes sensor systems and monitoring devices for metal display welding. Manufacturing specifications require continuous weld quality verification.
Inspection System Requirements
Vision sensor systems provide inspection speeds of up to 320 millimeters per second at 0.1 millimeter resolution. Quality inspection equipment detects:
- Weld burn defects
- Material porosity
- Weld discontinuity
- Position errors
- Surface quality
Ultrasonic measurement systems use phased array technology for weld verification. Equipment specifications include 729 virtual probes with 0.35 mm resolution. Quality inspection cycles complete within 200 seconds per product unit.
Thermal imaging systems detect internal weld defects. 3D inspection equipment provides continuous quality monitoring. Defect detection triggers automatic product removal for rework procedures.
Weld Parameter Standards
Digital systems monitor 20 weld quality measurements. Manufacturing parameters include:
- Weld penetration depth
- Seam measurements
- Profile specifications
- Surface standards
- Heat calculations
Quality software provides defect alerts for immediate correction. Data storage systems maintain inspection records with defect analysis reports.
Control systems use weighted average calculations for weld monitoring. Seam tracking accuracy shows 0.56 mm variation for continuous welds and 0.36 mm for non-continuous welds.
Cloud software systems track individual weld quality data. Wireless data collection records welding time, parameter changes, and system status. Hand-eye calibration aligns robot coordinates with visual inspection systems. Machine learning software classifies weld defects in tungsten gas welding operations.
Manufacturing Cost Analysis
The main cost benefits of robotic welding systems show 75 cents per hour operation costs. Manufacturing facilities report significant reductions in production expenses.
Labor Cost Benefits
Robotic welding systems match four manual welders’ output. Manufacturing cost reductions include:
- USD 45,000 yearly savings per operator replacement
- USD 100,000 annual system maintenance costs
- USD 100,000 reduction in workplace injury expenses
Material costs decrease 50% through automated systems. Manufacturing equipment costs return investment within two years. USD 250,000 robotic systems generate USD 1.5 million positive cash flow by year eight.
Production Efficiency Standards
Automated welding systems provide 150% productivity increase. Manufacturing benefits include:
- 24-hour production capability
- No operator fatigue issues
- Quick product changeover
- Reduced production delays
Manual welding requires worker break periods. Robotic systems maintain consistent output through production cycles.
Material Usage Requirements
Automated systems reduce material waste through:
- Parameter control standards minimize excess material
- Standard processes reduce variation rates
- Quality systems reduce defects 25%
System maintenance requires basic service during initial operation. Cable replacement follows standard maintenance schedules.
Manufacturing cost analysis includes:
- Labor cost reduction
- Quality control savings
- Material efficiency
- Insurance cost benefits
- Safety improvement
- Production increases
Labor costs increase 7-15% yearly for manual operations. Automated systems reduce new product setup time. Manufacturing facilities report improved safety standards and consistent quality through robotic welding systems.
Manufacturing Capabilities Summary
The main products and services through robotic welding systems provide three times faster production rates. Manufacturing facilities report 75% labor cost reduction through automated systems.
Quality inspection systems maintain 99% accuracy at 320 millimeters per second. Manufacturing equipment costs return investment within two years. Production facilities generate USD 1.5 million positive cash flow by year eight.
Workplace safety standards improve through automated welding systems. Manufacturing operations show 50% reduction in workplace injury expenses. Production quality maintains consistent standards through robotic welding equipment.
The main market data shows 400,000 welding position shortages by 2024. Manufacturing facilities achieve standardized production methods and reduced delivery times through robotic welding systems.
FAQs
Q1. How does robotic welding improve productivity in shop display manufacturing? Robotic welding systems can produce parts three times faster than manual welding while reducing labor costs by 75%. They operate 24/7 without fatigue, significantly increasing output and efficiency in shop display production.
Q2. What are the quality benefits of implementing robotic welding for display products? Robotic welding systems ensure consistent weld quality and precision. Automated inspection methods can achieve 99% accuracy at high speeds, detecting defects like porosity, cracks, and surface irregularities more efficiently than manual inspection.
Q3. How long does it typically take to see a return on investment for robotic welding systems? Most manufacturers recover their initial investment in robotic welding systems within two years. By year seven or eight, a $250,000 robotic investment can generate approximately $1.5 million in positive cash flow.
Q4. What factors should be considered when setting up a robotic welding system? Key considerations include choosing the right welding robot arm, planning the workspace layout, initial programming requirements, and designing custom welding fixtures. It’s also important to integrate the system with existing production lines and implement quality control measures.
Q5. How do robotic welding systems impact workplace safety? Robotic welding systems significantly enhance workplace safety by eliminating worker exposure to toxic fumes and reducing the risk of welding-related injuries. This can lead to a 50% decrease in workplace injury-related expenses, from $200,000 to $100,000 annually.
