Pallet racking cost saw a substantial increase in 2022, as prices jumped by almost 12.2% throughout the year. Businesses now have several investment choices to make. Single-Deep Pallet Racks cost between $55 to $200 per pallet position, while Drive-in Pallet Racks range from $200 to $500 per pallet position.
Companies planning storage expansions or upgrades need to learn about warehouse racking system prices. Your pallet racking costs will depend on several factors like dimensions, material composition, and supplier services. Specialized systems come with their own price tags – Gravity-Flow Racks cost $150 to $450 per pallet position. Double-Deep Pallet Racks are available from $80 to $300.
We analyzed real pallet rack pricing data from over 50 warehouse projects to help you direct these expenses better. This detailed analysis gives you the exact figures needed to plan your budget, whether you’re setting up a small storage space or building a massive distribution center. These insights will help you prepare for warehouse racking costs in 2025.
What Affects Pallet Racking Prices in 2025?
Your warehouse investment in 2025 depends on several factors that can add thousands to pallet racking costs. Smart businesses need to understand these elements to plan their storage solutions better.
Weight Capacity and Load Requirements
The load-bearing capacity needs will shape your pallet racking investment. Standard racks can support about 4 tons per beam pair or 5 tons per level, based on design specs. You’ll need to assess your storage needs carefully. Going over capacity limits can lead to structural failures, damage to products, or worker injuries.
Your choice of materials and construction methods depends on weight capacity. A warehouse that stores lightweight items like textiles won’t need the same sturdy racking as one storing heavy machinery parts. The beam capacity varies, too. Roll-formed beams support between 1,700 to 10,000 pounds per pair. You might need premium materials and reinforced designs for higher capacity needs.
Rack Height and Vertical Space Usage
The way you use vertical space plays a vital role in pricing. Taller systems cost more because they need extra materials and structural support. Your vertical expansion plans should account for:
- Building height limits
- How high can your forklifts reach
- Fire safety rules
- Extra weight on the bottom uprights
Storage above 12 feet becomes “high-pile” storage. This triggers extra permits and safety rules that bump up costs. OSHA rules say you need 18-inch clearance around sprinkler heads. This cuts into your usable vertical space.
Beams take up vertical space too—about 5 inches each. A four-tier system loses almost 2 feet just from beam height. These measurements matter when you’re figuring out the best rack setup and pricing.
Material Type: Roll-formed vs Structural Steel
Your choice between roll-formed and structural steel makes a big price difference:
Roll-formed racks use lighter-gauge steel with boltless beam connections. They cost less upfront and work well for retail warehouses and 3PL facilities with moderate storage needs. These systems can handle standard pallet loads of 2,000-2,500 pounds just fine.
Structural steel racks are made from heavier hot-rolled steel channels welded together. They’re tougher and resist damage better. They cost 20-30% more than roll-formed ones, but often pay off better in the long run by offering:
- Better protection against forklift hits
- Easier cleaning (great for food storage)
- Longer life—usually 5-10 years more than roll-formed systems
You can get hybrid options that mix structural frames with roll-formed beams. These strike a nice balance between cost and durability.
Market Trends and Steel Price Fluctuations
Steel market changes and trade policies will affect your 2025 costs substantially. Steel makes up 60-70% of total racking system costs. Recent market swings have pushed prices way up. Domestic companies bought foreign-owned mills, which led to a massive 173% jump in hot-rolled steel prices in just one year.
The math gets tricky with current tariffs. The basic 25% steel tariff plus extra tariffs of 30-50% mean some countries face total tariffs over 70%. Even U.S. manufacturers have raised prices because of market conditions, not just cost increases.
These price swings make budget planning harder. Suppliers either raise prices right away or bump them up month by month to keep up with the market. Businesses now face tough choices about when to buy, which supplier to use, and what materials to pick for their warehouse projects.

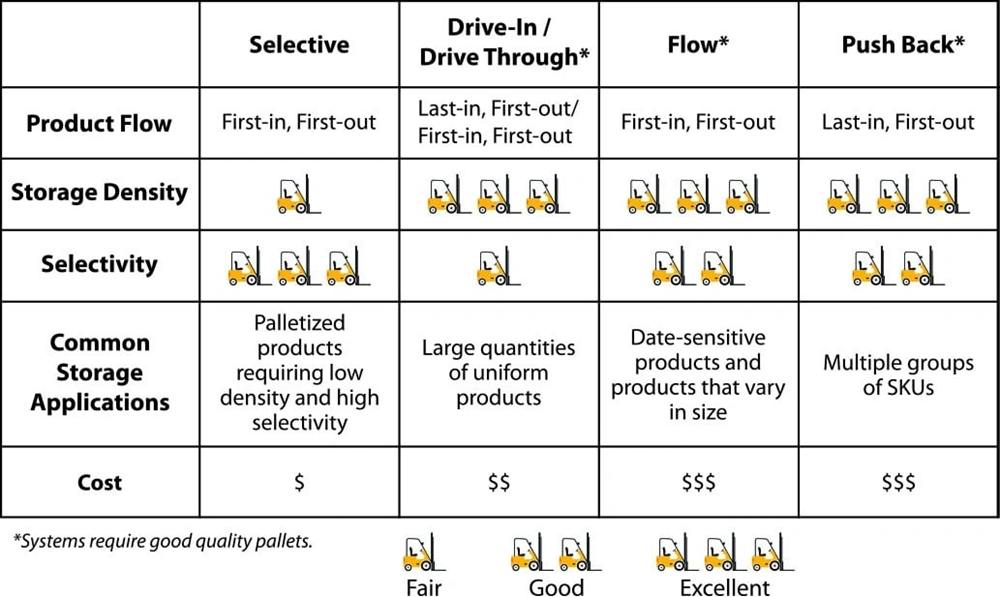

Types of Pallet Racking and Their Cost Ranges
Warehouses need different racking systems for their storage needs. Each system comes with its advantages and price points. This helps businesses pick solutions that work best for their budget and operations.
Selective Racking: $55–$200 per pallet position
Selective pallet racking stands as America’s most popular storage solution in warehouses. The name comes from its ability to let workers access any pallet without moving others. This makes it perfect for businesses that handle many different products and need frequent access.
The price of selective racking can vary quite a bit. Simple roll-formed options start at $55 per pallet position. Premium structural steel versions can go up to $200 per pallet position. Several factors shape this price range:
- Material composition (roll-formed vs. structural)
- Height and configuration
- Load capacity requirements
- Additional accessories
Roll-formed selective racking costs between $50-$75 per pallet position. This makes it a budget-friendly choice for standard warehouse needs. Structural selective racks cost $75-$100 per pallet position. They’re tougher and better at handling forklift impacts.
Extra features can add up quickly. Wire decking costs $15-$21 per position. Cross bars add another $12-$16 per position. Safety equipment like upright protectors ($20-$30 each) and end-of-aisle protectors ($105-$125 each) are essential add-ons.
Drive-in Racking: $200–$500 per pallet position
Drive-in racking maximizes storage density by removing multiple aisles. Forklifts can drive straight into the rack structure. This system works best for warehouses that store large amounts of similar products, especially in cold storage.
Drive-in systems cost between $200 and $500 per pallet position. The price changes based on depth and setup. Simple two-pallet-deep setups cost about $121-$135 per position. Four-pallet-deep configurations run from $115-$129 per position.
Most vendors price these systems between $150-$250 per pallet position. Installation usually adds 20-35% to equipment costs. Drive-in systems can double your storage capacity compared to selective racking by getting rid of extra access aisles.
Push-back Racking: $200–$400 per pallet position
Push-back racking strikes a sweet spot between storage density and selectivity. The system works with nested carts on sloped rails. Pallets move forward on their own when someone removes the front pallets.
Push-back systems typically cost $200-$400 per pallet position. The price depends mostly on lane depth. Two-pallet-deep setups run about $151-$181 per position. Five-pallet-deep systems cost $243-$273 per position. Some suppliers charge between $150-$300 per position.
This system shines in operations that need both density and good selectivity. Push-back racking costs more than selective or drive-in options. The higher price pays off through better space usage, especially in warehouses where floor space comes at a premium.
Pallet Flow Racking: $200–$450 per pallet position
Pallet flow racking excels at high-throughput FIFO (First-In-First-Out) inventory management. Rollers or wheels on sloped rails automatically move pallets from loading to picking spots.
Prices range from $200-$450 per pallet position. This makes it one of the priciest racking options available. Some suppliers charge $300-$500 per position. Higher prices apply to systems that handle heavier loads or need special braking systems.
Food warehouses, pharmaceutical facilities, and businesses handling perishables get the most value from this system. The high upfront cost can lead to savings through:
- Less forklift travel
- Lower labor needs
- Automatic stock rotation
- Better space usage (up to 75% fewer aisles)
Buying used pallet flow systems can save 30-50% compared to new ones. This offers a smart way to cut costs for budget-conscious operations.

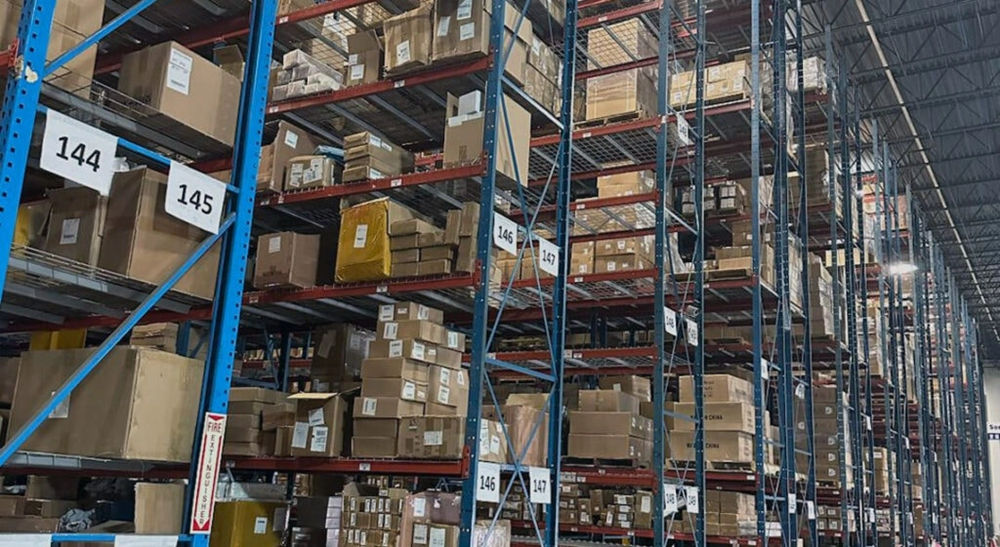

Real Prices From 50+ Warehouse Projects
Ground data from over 50 warehouse projects shows exact price examples in facilities of all sizes. Business owners planning warehouse storage investments in 2025 will find these numbers helpful as standards.
Small Warehouse (Under 10,000 sq ft): Cost Examples
Complete pallet racking installation in small warehouse projects costs between $25,000 and $75,000. Budget-friendly projects can cost as low as $10,000, while premium installations with higher-grade materials might reach $50,000. Storage density requirements play a vital role in determining costs for smaller spaces. Space utilization becomes significant because floor area limits vertical storage options.
Mid-size Warehouse (10,000–25,000 sq ft): Cost Breakdown
Mid-sized facilities need $75,000 to $300,000 for total project costs. A standard 25,000 square-foot warehouse with roughly 5,000 pallet positions needs $375,000 to $1,000,000 just for selective racking equipment. Installation adds 15-25% to these numbers, which means an extra $56,250 to $250,000.
Our fitting shop believes every retail fit-out project is unique. We collaborate with you to understand your specific needs and priorities. Our shop fittings specialists turn your vision and drawings into functional, attractive products that raise your store’s ambiance and improve the overall consumer experience.
Large Warehouse (25,000+ sq ft): High-Density Solutions
Large distribution centers need investments starting at $300,000, and costs often exceed $1 million. Warehouses larger than 60,000 square feet usually invest between $200,000 and $1 million in their racking systems. High-density storage solutions like drive-in or pallet flow systems make economic sense in these expansive facilities. The higher per-position cost balances out through better space utilization.
Used vs New Racking: Price Differences
Companies can save 20-25% on their overall storage system costs by buying used pallet racking. Notwithstanding that, these savings come with trade-offs. Used systems need more maintenance and don’t last as long. The biggest savings come from purchasing used beams. A hybrid approach that combines new uprights with used beams often gives the best balance between cost savings and structural integrity. Keep in mind that freight costs can quickly eat up these savings if the used equipment sits far from the installation site.
Installation, Permits, and Hidden Costs
Setting up a complete pallet racking system comes with many expenses beyond just buying the equipment. Companies need to think over these costs carefully when planning their warehouse storage budget.
Installation Labor: 15–35% of Equipment Cost
Labor makes up much of the total pallet racking cost. It typically runs between 15% to 35% of what you spend on equipment. Project complexity and system type affect these percentages. Complex systems like automated or high-density setups can cost $200-$400 per hour to install. Teams with proper certification charge 20-30% more than regular crews. This extra cost helps guarantee safety compliance.
Permitting and Engineering Requirements
Getting warehouse racking permits needs lots of paperwork, especially CAD drawings that show floor plans and rack details. Engineers must provide seismic calculations before local authorities give their approval. The whole permit process usually takes 2-3 months. Fees range from 10-30% of what the project costs. Companies that skip proper permits might face big fines, delays, or even have to take down their system.
Seismic Zone Compliance and Floor Load Testing
Location determines seismic requirements, with zones rated from SDC A (lowest risk) to SDC F (highest risk). Installing racks in earthquake-prone areas costs 20-40% more. High-risk zones need bigger base plates, extra anchors, and stronger steel. Concrete slabs must be thicker in these areas, which drives up foundation costs.
Accessories: Wire Decking, Safety Bars, Column Guards
Key accessories include:
- Wire decking: Lets you see through racks better and keeps air flowing while stopping debris
- Safety bars: Keep pallets from falling between beams
- Column protectors: Shield frame posts from forklift damage
These add-ons might look small, but they make operations safer and more efficient. They often pay for themselves by reducing product damage and workplace injuries
How to Get the Best Pallet Rack Pricing
Getting the best pallet racking prices needs smart planning and market knowledge. Smart businesses save 5-15% on bulk orders. They can save up to 40% by looking at refurbished options.
Questions to Ask Before Requesting a Quote
Smart warehouse managers get these details ready before they talk to suppliers:
- What inventory types will you store, and what are their dimensions?
- How much do your pallets weigh?
- What’s your building’s ceiling and clear height?
- Which local safety codes and seismic requirements apply to your area?
- What’s your target date for installation?
Having these details ready helps avoid expensive mismatches between your needs and the systems you buy.
How to Compare Supplier Quotes Effectively
Getting at least 3-5 quotes from different suppliers helps you find competitive prices. Look beyond the final price and check what each quote covers:
- Look at steel gauge ratings—thicker material means stronger racks
- Review shipping cost details—distant suppliers’ shipping fees can eat up your savings
- Check payment options—some suppliers let you spread out payments
When to Buy: Timing the Market for Steel Prices
Steel prices affect your final costs significantly. Keep an eye on market trends and try to buy during slow seasons. You might want to look at used or refurbished systems during price spikes to save 40-60%.
JY Shop Fitting Our 12+ years in shop fitting have helped us perfect our craft. Our commercial shop fitters team creates beautiful retail spaces that work as good as they look. We handle everything from clothing shop setups to complete retail fitting projects across various sectors.
Conclusion
Pallet racking costs are a big deal for businesses of every size. Data from more than 50 warehouse projects shows prices range from $55 per pallet position for simple selective racking to $500 for specialized systems like drive-in setups. Steel prices remain volatile and have shot up by 170% recently. This means businesses need to match their storage requirements with what they can afford.
Smart warehouse planning needs a balance between current spending and future operational benefits. High-end options like pallet flow systems cost more upfront but pay off through better space usage and lower labor costs. Structural steel racks last 5-10 years longer than roll-formed ones, which makes their 20-30% higher price worth it for heavy-duty operations.
Many warehouse managers get caught off guard by hidden costs. Permit fees, seismic reinforcement, professional installation, and must-have accessories add 35-65% to basic equipment prices. Your budget should include extra funds to cover these additional expenses in the racking projects.
You can cut total costs by 15-40% with clever buying strategies. Getting multiple supplier quotes, buying when market prices are low, and mixing new uprights with used beams are practical ways to save money. A detailed plan before asking for quotes helps avoid costly specification errors that need fixes later.
Pick us as your shopfitting partners and see how professional shopfitting enhances your retail space. We’ll work together to build an engaging store that your customers will remember. The warehouse racking world keeps changing, but with the right pricing information and planning, you can direct your storage expansion projects successfully while getting the most value for your money.
Key Takeaways
Understanding pallet racking costs is crucial for warehouse planning, with prices varying dramatically based on system type, materials, and hidden expenses that can significantly impact your budget.
• Pallet racking costs range from $55-$500 per position, depending on system type: selective ($55-$200), drive-in ($200-$500), push-back ($200-$400), and pallet flow ($200-$450)
• Installation and permits add 35-65% to equipment costs through labor (15-35%), seismic compliance, engineering requirements, and essential safety accessories
• Steel price volatility drives major cost fluctuations, with recent increases exceeding 170%, making market timing and supplier comparison critical for budget control
• Used racking saves 20-40% upfront, but consider shorter lifespan and higher maintenance versus new systems that last 5-10 years longer
• Get 3-5 quotes and prepare detailed specifications, including weight requirements, ceiling height, and local codes to avoid costly mismatches and secure competitive pricing
Smart procurement strategies, including bulk purchasing and hybrid solutions combining new uprights with used beams, can reduce total project costs by 15-40% while maintaining structural integrity and operational efficiency.
FAQs
Q1. What is the typical cost range for pallet racking per position? Pallet racking costs vary widely depending on the type of system. Selective racking ranges from $55-$200 per pallet position, while more specialized systems like drive-in racking can cost $200-$500 per position.
Q2. How much should I budget for installation and additional costs? Plan to allocate an additional 35-65% on top of equipment costs for installation, permits, and accessories. Installation labor alone typically accounts for 15-35% of the equipment expense.
Q3. Are used pallet racks a cost-effective option? Used pallet racking can save 20-40% upfront compared to new systems. However, consider that used racks may have a shorter lifespan and higher maintenance requirements.
Q4. How do steel prices affect pallet racking costs? Steel price volatility significantly impacts racking costs, with recent increases exceeding 170%. Monitor market trends and consider timing your purchase during price lulls to potentially save on your investment.
Q5. What steps can I take to get the best pricing on pallet racking? To secure the best pricing, obtain 3-5 quotes from different suppliers, prepare detailed specifications of your needs, consider bulk purchasing options, and explore hybrid solutions combining new and used components. These strategies can potentially reduce total project costs by 15-40%.
